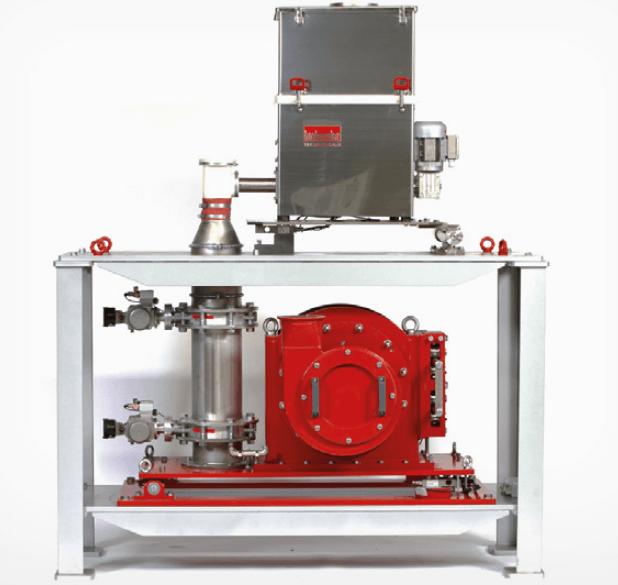

MultiNo®-M/S

OPPOSED JET MILL RANGE


MultiNo®-M/S means grinding and classifying with only one system! Thanks to its very easy maintenance and cleaning, it is ideally suited for frequent and quick product changes. Its special strength is the processing of abrasive, high-purity and gluey products.

The working principle of MultiNo®-M/S is based on the propulsion of particles by compressed air. Colliding at high speed, the particles are reduced in size. The benefits of “product-on-product grinding”: no product contamination by other materials, gentle processing and minimized wear-and-tear costs due to abrasion-free grinding. When used as a technical laboratory system – in testing and/or in the production of small quantities – optimum results and minimum product consumption are  guaranteed.

  • Fully automatic operation
  • Compact design
  • Easy and quick cleaning
  • Multifunctional use
  • Extremely powerful

MultiNo MS

Milling

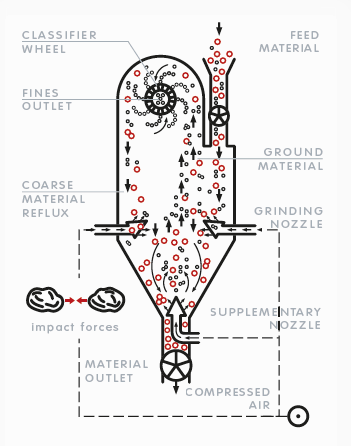

WORKING PRINCIPLE MILLING – DEAGGLOMERATION

From the big bag station, the feed material enters the hopper of the gravimetrical dosing unit. Through a timing flap, it is continuously fed into the milling chamber, where it is fluidized by compressed air from the grinding nozzles facing each other. Colliding at high speed, the particles are reduced in size.

An upward current transports the milled product to the internal classifying unit where the specially designed NOLL classifying wheel separates the fine from the coarse particles. The desired powder fineness and precise top cut particle size are controlled by adjusting the  wheel’s rotational speed.

The as yet unmilled material as well as the coarse particles returning from the classifier both flow back down into the fluidized product bed. The fine product – processed according to client specification – exits the machine through the tangential fines outlet to be packaged.

MultiNo MS Milling

PRODUCT-SPECIFIC MACHINE CONFIGURATION
Classifying Wheel Internal Lining
Nozzles
sichterrad-multino-msmStainless Steel
Special Steel
Polyamide
Ceramic
Stinnenbeschichtung-multino-msmainless Steel
Special Steel
Steel+ Polyurethane
Steel+ Ceramic
duesen-multino-msmSpecial Steel
Stainless Steel
Polyamide
Ceramic

Classification

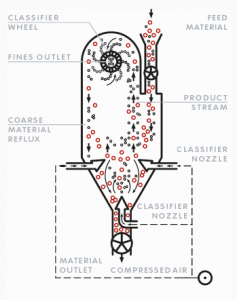

WORKING PRINCIPLE CLASSIFICATION

From the big bag station, the feed material enters the hopper of the gravimetrical dosing unit. Through a timing flap, it is continuously fed into the classifying chamber. An air current transports the material directly to the specially designed NOLL classifier wheel which separates the fine particles from the coarse.

The coarse particles now flow back down into the coarse material separation zone. Here, through the propulsion of compressed air, they are again intensely processed in order to further separate small dust particles and to eliminate agglomerates. The coarse material then exits the machine through the bottom timing flap outlet to be packaged.

Classifying with MultiNo® allows very steep particle size distributions and precise top cuts. The desired powder fineness is controlled by adjusting the classifier’s air volume and throughput as well as the wheel’s rotational speed. The fine product – processed according to client specification – exits the machine through the tangential fines outlet to be packaged.

MultiNo MS classification

PRODUCT-SPECIFIC MACHINE CONFIGURATION

Classifying Wheel Internal Lining Nozzles
Stainless Steel
Special Steel
Polyamide
Ceramic
Stinnenbeschichtung-multino-msmainless Steel
Special Steel
Steel+ Polyurethane
Steel+ Ceramic
duesen-multino-msmSpecial Steel
Stainless Steel
Polyamide
Ceramic



Facts





















Operating Range

APPLICATION RANGE: abrasive, gluey, adhesive, easily depositing, high-purity products

TEMPERATURE RANGE: ±5°C up to 180°C

PRODUCT HARDNESS: Mohs hardness 4-10















Gallery

multino_msm6240_280x960_color

More information:

Anlage MultiNo®-M/S (PDF Dokument)
