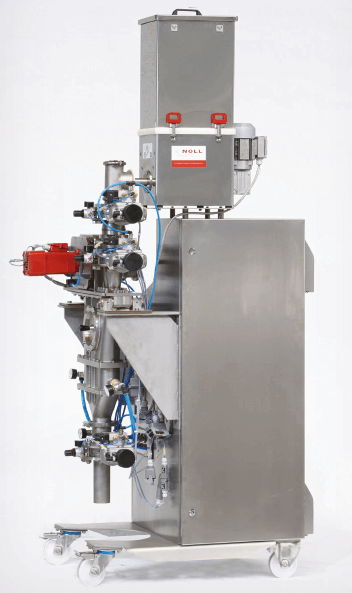

MultiNo®-M

Opposed Jet Mill Range


MultiNo®-M is the optimal opposed jet mill for the ultra-fine particle size reduction of dry materials with Mohs hardnesses up to 10. Its specially designed milling chamber prevents blockages and depositions of sticky materials but allows easy access for thorough cleaning and comfortable maintenance. Powder sizes of <2 to 200 µm can be easily reached. Producton-on-product grinding and the use of various abrasion-resistant linings make the MultiNo®-M ideally suited for the processing of high-purity or temperature-sensitive products.

  • Highly efficient grinding performance
  • Gravimetrical dosing
  • Exact reproducibility
  • Quick cleaning



MultiNo M

Milling

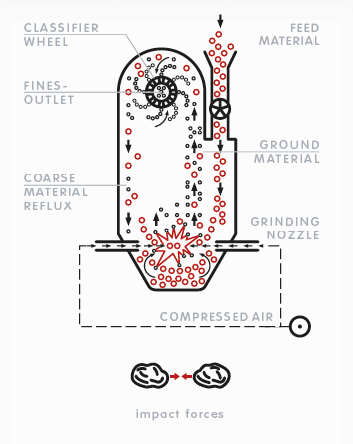

WORKING PRINCIPLE MILLING

From the big bag station, the feed material enters the hopper of the gravimetrical dosing unit. Through a timing flap, it is continuously fed into the milling chamber, where it is fluidized by compressed air from the grinding nozzles facing each other. Colliding at high speed, the particles are reduced in size. An upward current transports the milled product to the internal classifying unit where the specially designed NOLL classifying wheel separates the fine from the coarse particles. The desired powder fineness and precise top cut particle size are controlled by adjusting the wheel’s rotational speed.

The as yet unmilled material as well as the coarse particles returning from the classifier both flow back down into the fluidized product bed. The fine product – processed according to client  specification – exits the machine through the tangential fines outlet to be packaged.



MultiNo M Milling



PRODUCT-SPECIFIC MACHINE CONFIGURATION
Classifying Wheel Internal Lining Nozzels
sichterrad-multino-msmStainless Steel
Special Steel
Polyamide
Ceramic
innenbeschichtung-multino-msmStainless Steel
Special Steel
Steel + Polyurethane
Steel +  Ceramic
Stainless Steelduesen-multino-msm
Special Steel
Polyamide
Ceramic





Facts

MultiNo M facts

Operating Range

APPLICATION RANGE: abrasive, gluey, adhesive, easily depositing, high-purity products

TEMPERATURE RANGE: ±5°C up to 180°C

PRODUCT HARDNESS: Mohs hardness 4-10





Application Examples

  • Inorganic pigments
  • powder coatings
  • toner
  • technical ceramics
  • magnets
  • abrasives
  • graphite
  • chemical products
  • foodstuffs
  • high-purity materials

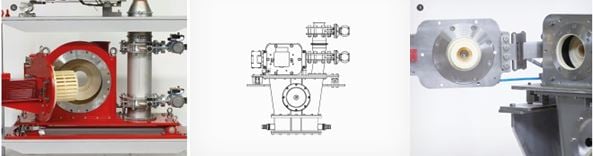

Gallery

MultiNo M Bilder

More information:

Anlage MultiNo®-M  (PDF Dokument)
