SEPARANO®-SE

Dynamic Air Classifiers


Our SeparaNo®-SE classifier series represents a new, revolutionary classifying technology. SE classifiers are designed for rapid cleaning and easy maintenance. Thus, frequent product changes  can be made very easily. Furthermore, we have reversed the classifier‘s flow direction, we provide improved product input, and we have optimized housing geometry: theclassifier‘s arrangement is now eccentric, permitting a considerable reduction of the additional air required, while minimizing abrasion. Neither coarse particles nor grinding elements get in the way of classifying  performance.

  • Fully automatic operation
  • Compact construction
  • Easy and quick cleaning/maintenance
  • Extremely low abrasion
  • Highly efficient classification

SeparaNo®-SE: Eccentric equipment with classifier door and spiral outlet

SeparaNo®-E: Eccentric equipment without classifier door and spiral outlet, low budget

SeparaNo 6300-SE























Classification

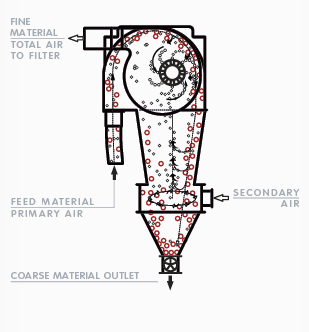

WORRKING PRINCIPLE CLASSIFICATION

The product enters via the primary air stream and is directly transported to our specially designed NOLL classifying wheel. Dry, oil-free air ensures uncontaminated feed material. Using  centrifugal forces, the classifier wheel separates the fine particles from the coarse, allowing very steep particle size distributions.

The coarse material flows down into the coarse material separation zone, where its particles mix with turbulent air, thus further separating small dust particles and eliminating agglomerates. The treated coarse particles continue through the bottom timing flap exit to be discharged and packaged.

The classifying performance is controlled and optimized by adjusting air volume and throughput, as well as by the classifying wheel‘s rotational speed. A specially generated air stream along the classifier wheel insures that no powder can enter the bearings or block the classifying wheel.  The fine material according to specification exits the machine through its tangential exit, where it is packaged into the appropriate packaging medium.

















PRODUCT-SPECIFIC MACHINE CONFIGURATION
Classifying Wheel
Internal Lining
Separation Blades
Stainless Steel
Special Steel
Polyamide
Ceramic
Stainless Steelinnenbeschichtung-multino-msm
Special Steel
Steel + Polyurethane
Steel + Ceramic
Stainless Steel
Special Steel
Ceramic
Polyamide



Facts























Operating Range

APPLICATION RANGE: abrasive, gluey, adhesive, easily depositing, high-purity products

TEMPERATURE RANGE: ±5°C to 180°C

PROCUCT HARDNESS: up to 10 Mohs













Application Examples

  • Inorganic pigments
  • powder coatings
  • toner
  • technical ceramics
  • magnets
  • abrasives

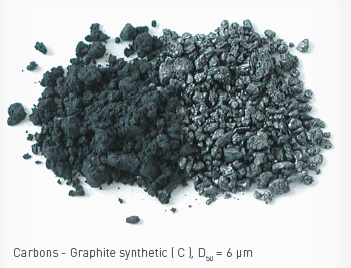

  • graphite
  • chemical products
  • foodstuffs
  • high-purity materials
